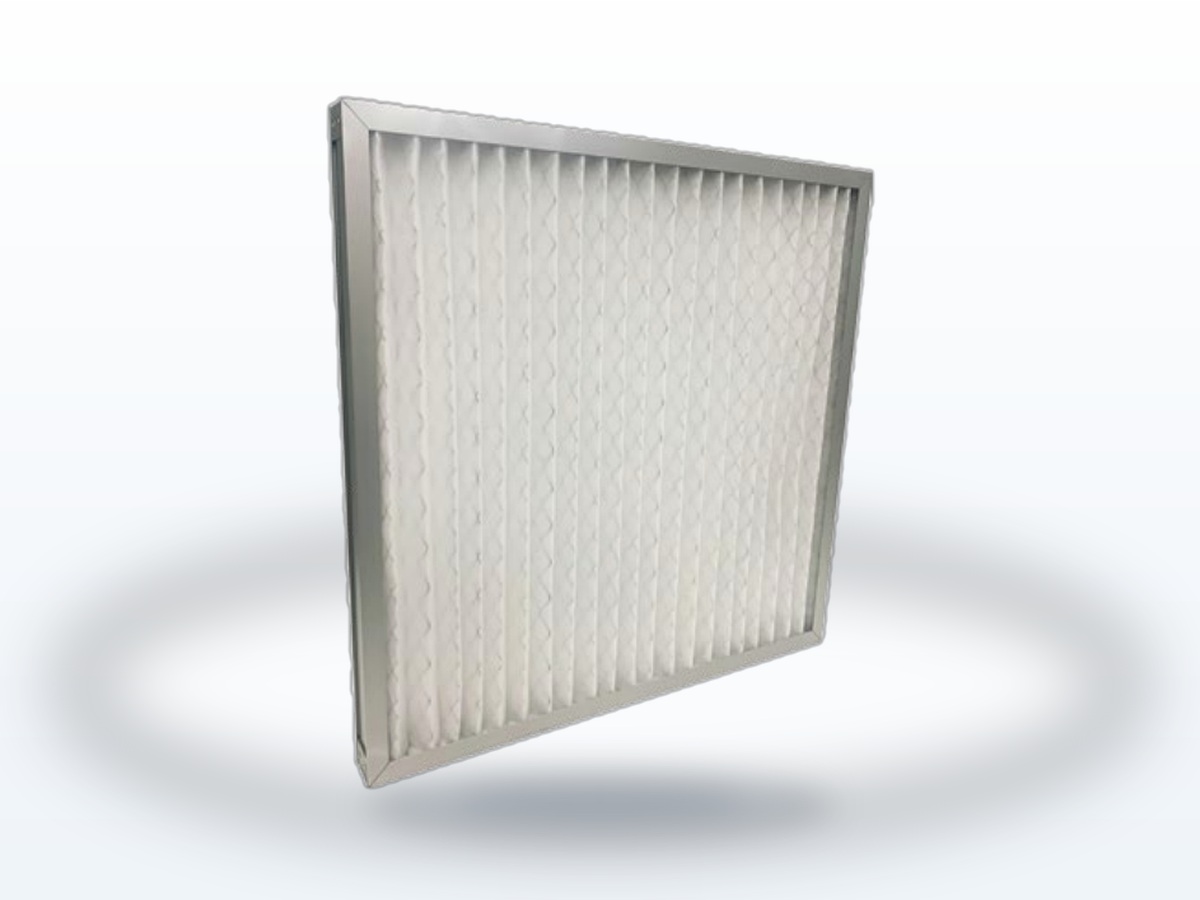

Stage 1: G4 Pre-Filter

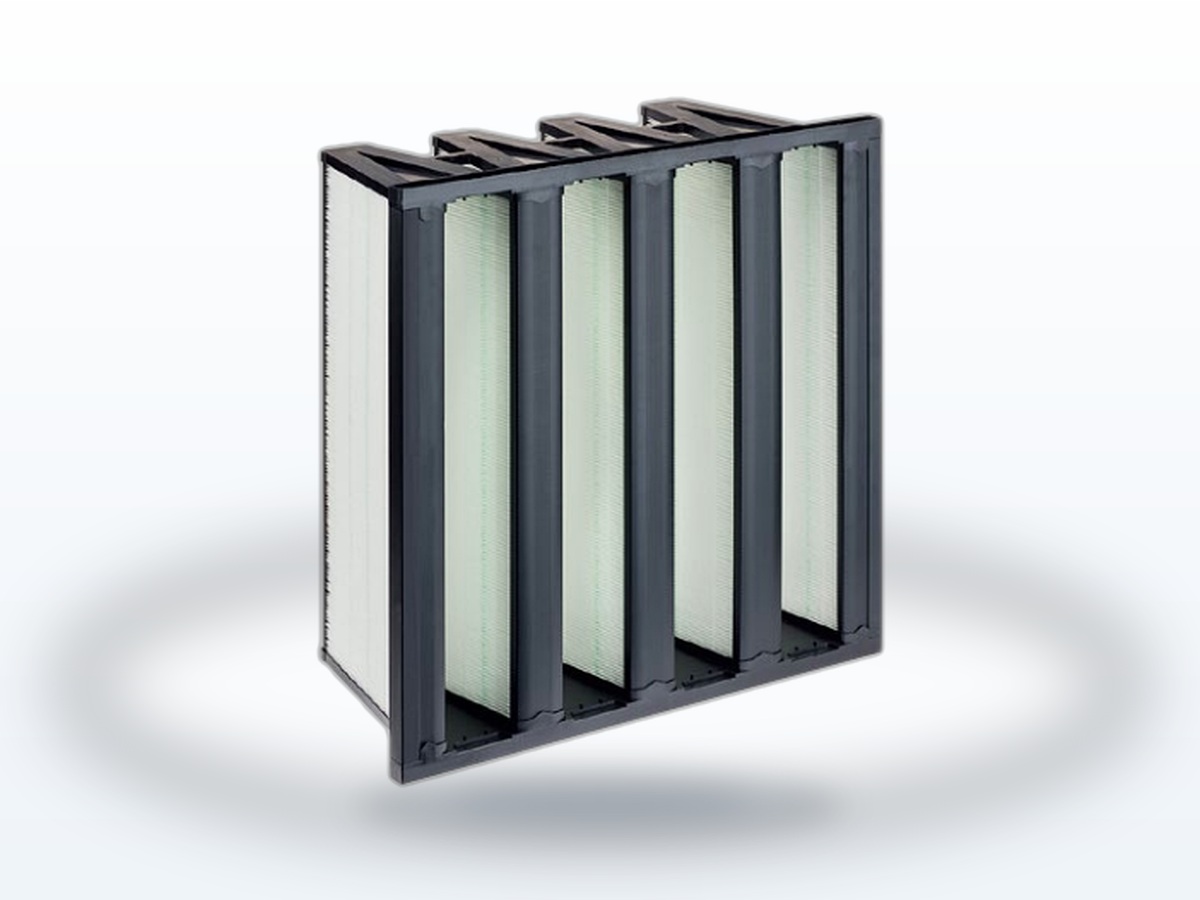

Stage 2: Carbon Bed

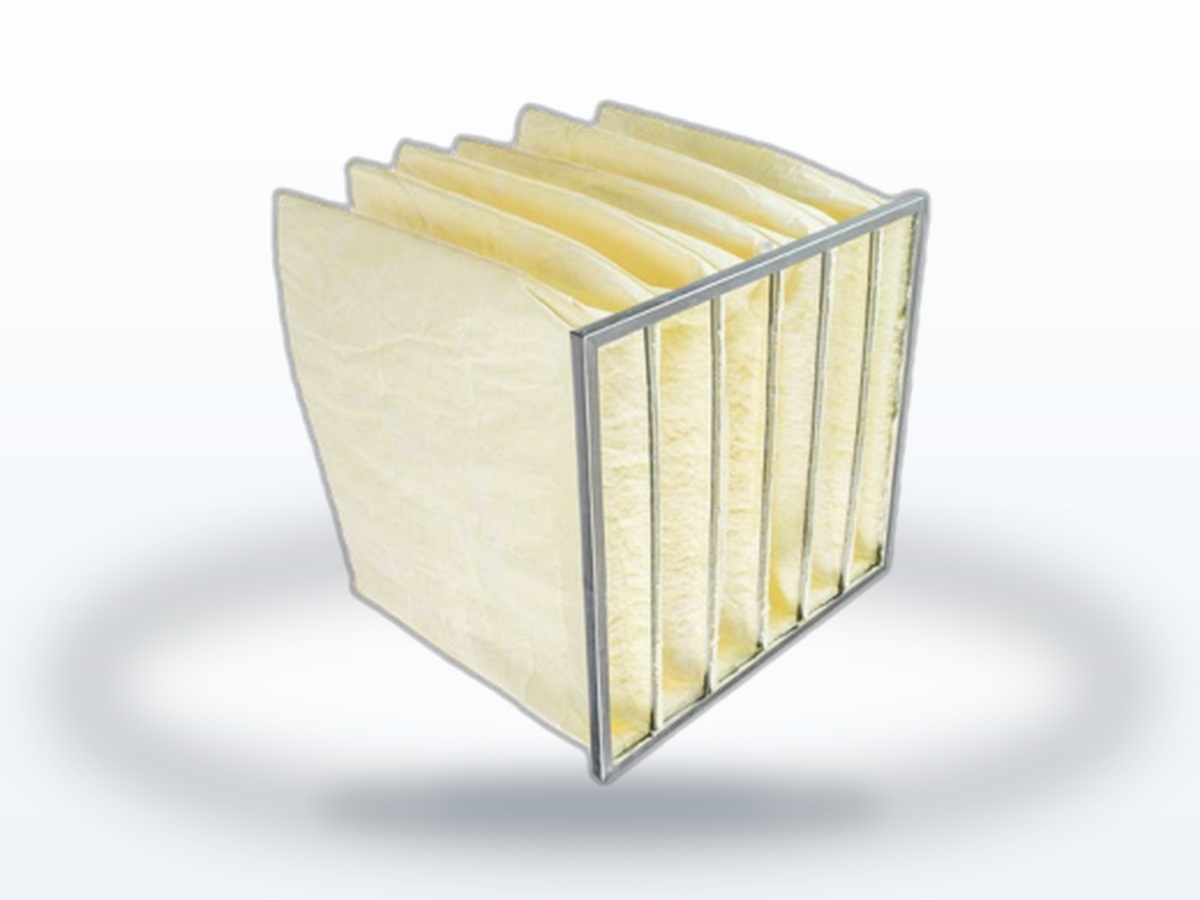

Stage 3: F8 Bag Filter
An engineered monoblock industrial air purification system integrating multi-stage particulate and gas filtration with an onboard power blower. Specifically engineered for industrial exhaust carrying dust, foul odors, and volatile organic compounds (VOCs). The unit is factory-fitted with an explosion-proof centrifugal fan and integrated differential pressure monitoring to guarantee stable compliant emissions.
Suitable Industrial Operations:
Automotive and furniture spray coating booths, chemical synthesis plants, electronics semiconductor manufacturing, food & flavor processing, pharmaceutical clean spaces, and analytical testing laboratories.
| Sub-Component | Standard Dimension / Specification | Material & Filtration Efficiency | Engineering Features |
|---|---|---|---|
| Stage 1 Pre-Filter | 595 × 595 × 25 × 380 mm | G4 Synthetic Cotton / Galvanized Frame | Captures coarse dust & aerosols, protecting carbon bed |
| Stage 2 Adsorption Module | 595 × 595 × 46 mm | Granular Activated Carbon Pellet Module | High iodine value (>900 mg/g) for VOCs & odor molecules |
| Stage 3 Intermediate Filter | 595 × 595 × 25 × 380 mm | F8 Fine Fiber Pocket / Galvanized Frame | Eliminates fine carbon dust & sub-micron particulate |
| Differential Pressure Gauge | 0 – 3 kPa Dial Gauge | Direct Surface Mount on Housing | Real-time indication of filter loading & maintenance timing |
| Centrifugal Blower | Direct Belt-Drive Centrifugal | Ex-Proof (Flameproof) Motor, Grade 2 Efficiency | Safe for hazardous solvents, spark-resistant construction |
| Electrical Rating | 380V / 3-Phase / 50Hz (60Hz Optional) | Industrial Power Grid Ready | Thermal overload & phase protection built-in |
| Operating Temperature | -10°C to +60°C continuous | Standard Factory Ambient | High-temp media variants available up to 120°C |
| Duct Connection Flange | Rectangular / Circular | Custom Fabricated to Plant Ducting | Acoustic isolation flexible transition connector |
